턴버클


3553210174_1399600726.76.jpg 3553210174_1399600738.35.gif

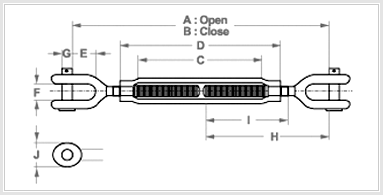

Unit : mm
규 격
(Inch)
길이 (Length mm) 치수 (mm) 사용하중
(Ton)
무게
(kg)
A B C D
EYE JAW HOOK EYE JAW HOOK All Type All Type EYE
JAW
HOOK EYE JAW HOOK
3/8x6 443.8 410 - 291.3 257.6 - 152.4 180.8 0.54 - 0.3 0.4 -
1/2x6 510 470 - 332.2 292.1 - 152.4 190.5 1 - 0.5 0.7 -
1/2x9 662.4 622.3 - 408.4 368.3 - 228.6 266.7 1 - 0.7 0.8 -
1/2x12 814.8 774.7 - 484.6 444.5 - 304.8 342.9 1 - 1 1.1 -
5/8x6 557 509.3 520.7 372.9 325.1 336.6 152.4 200.2 1.59 1.02 1.3 1.2 1.2
5/8x9 709.4 661.7 673.1 449.1 401.3 412.8 228.6 276.4 1.59 1.02 1.5 1.6 1.5
5/8x12 861.8 814.1 825.5 525.3 477.5 489 304.8 352.6 1.59 1.02 1.6 1.8 1.6
3/4x6 606.5 546.1 568.5 416.1 355.6 378 152.4 209.6 2.36 1.36 1.7 1.9 1.8
3/4x9 759 698.5 720.9 492.3 431.8 454.2 228.6 285.8 2.36 1.36 2.1 2.5 2.4
3/4x12 911.4 850.9 873.3 568.5 508 530.4 304.8 362 2.36 1.36 2.5

2.9

2.5
3/4x18 1216.1 1155.7 1178.1 720.9 660.4 682.8 457.2 514.4 2.36 1.36 3.3 3.7 3.7
7/8x12 941.6 891.8 914.4 592.3 542.5 565.2 304.8 371.3 3.27 1.82 3.3 3.7 3.7
7/8x18 1246.4 1196.6 1219.2 744.7 694.9 717.6 457.2 523.7 3.27 1.82 4.5 4.9 4.5
1x6 710.4 627.9 651 507.2 424.7 447.8 152.4 228.6 4.54 2.27 4.1 4.6 4.2
1x12 1015.2 932.7 955.8 659.6 577.1 600.2 304.8 381 4.54 2.27 5.2 5.7 5.4
1x18 1320 1237.5 1280.6 812 729.5 752.6 457.2 533.4 4.54 2.27 6.4 6.9 6.4
1x24 1624.8 1542.3 1565.4 964.4 881.9 905 609.6 685.8 4.54 2.27 7.8 8.2 7.8
1 1/4x12 1087.4 1011.9 1027.2 719.1 643.6 658.9 304.6 384 6.9 2.95 8.6 9.3 9.3
1 1/4x18 1392.2 1316.7 1332 817.5 796 811.3 457.2 536.4 6.9 2.95 10.4 11.2 10.4
1 1/4x24 1697 1621.5 1637.8 1023.9 948.4 963.7 609.6 688.8 6.9 2.95 12.3 12.8 12.3
1 1/2x12 1155.7 1054.1 - 774.7 673.1 - 304.8 400.1 9.72 - 12.5 13.9 -
1 1/2x18 1460.5 1358.9 - 927.1 825.5 - 457.2 552.5 9.72 - 14.1 16.7 -
1 1/2x24 1765.3 1663.7 - 1079.5 977.9 - 609.6 704.9 9.72 - 17 18.5 -
1 3/4x18 1457.5 1355.9 - 1000.3 898.7 - 457.2 568.5 12.71 - 23.8 24.5 -
1 3/4x24 1762.2 1660.7 - 1152.7 1051.1 - 609.6 720.9 12.71 - 26.3 28.8 -
2x24 1922.5 1766.3 - 1312.9 1156.7 - 609.6 736.6 16.8 - 38.7 42.8 -
2 1/2x24 1997 1853.7 - 1387.3 1244.1 - 609.6 788.9 27.24 - 65.5 74.9 -
2 3/4x24 2057.4 1898.7 - 1447.8 1289.1 - 609.6 788.9 34.05 - 88.1 89.9 -
